One plugin. In, mix, out.
Effect is a one-slot skin over the studio DSP catalog. Delay, reverb, crunch, filter, or chorus. Audio in, mix as CV, audio out. Rack is the multi-slot version.
What it is
One insert. Kinds are delay, reverb, crunch, filter, and chorus. Audio in is the dry. Mix is CV for wet amount. Audio out is the wet chain. Bypass lives on the face. This is not Correct — Correct is a live pitch box. It is not Rack — Rack holds four to eight of the same catalog.
How to use it

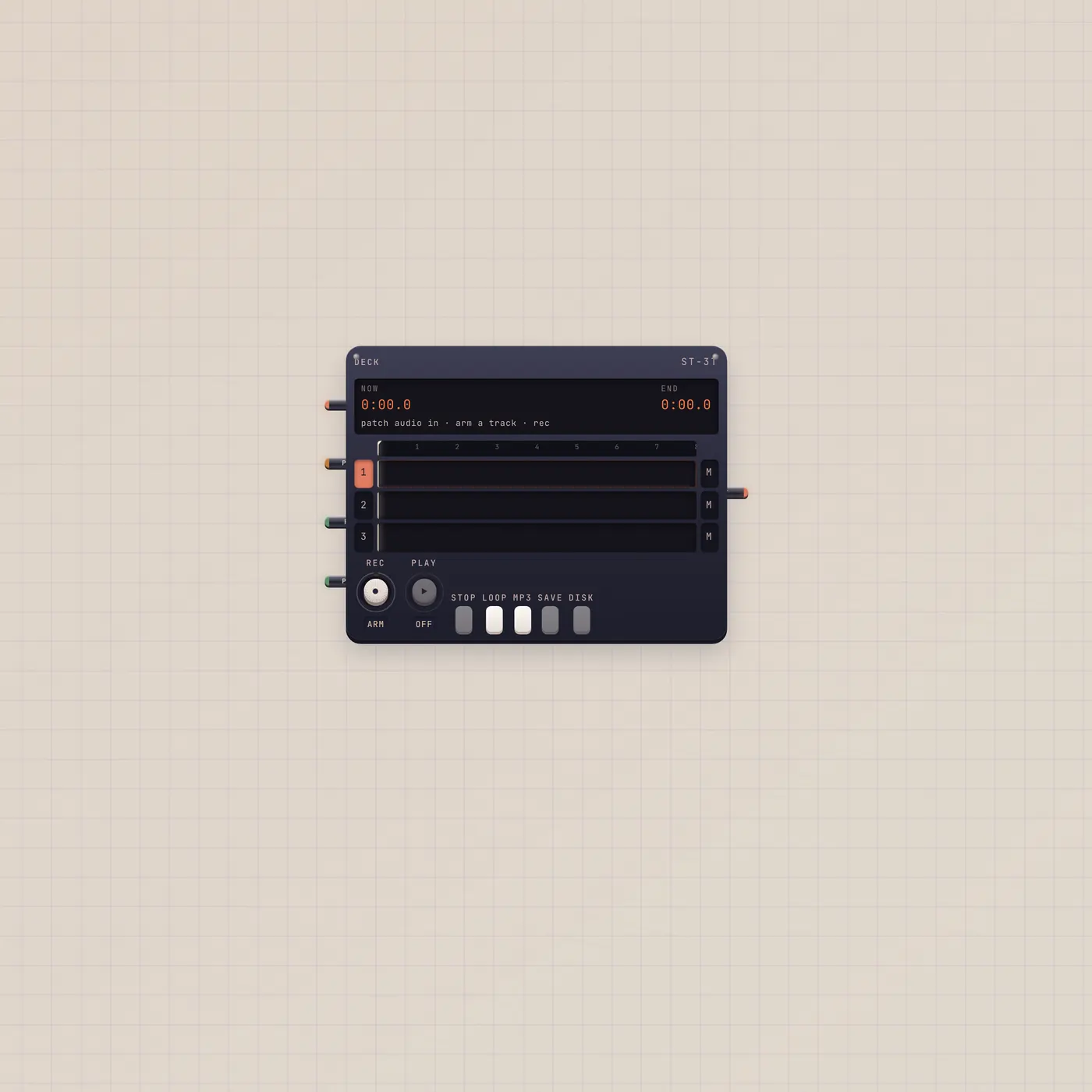

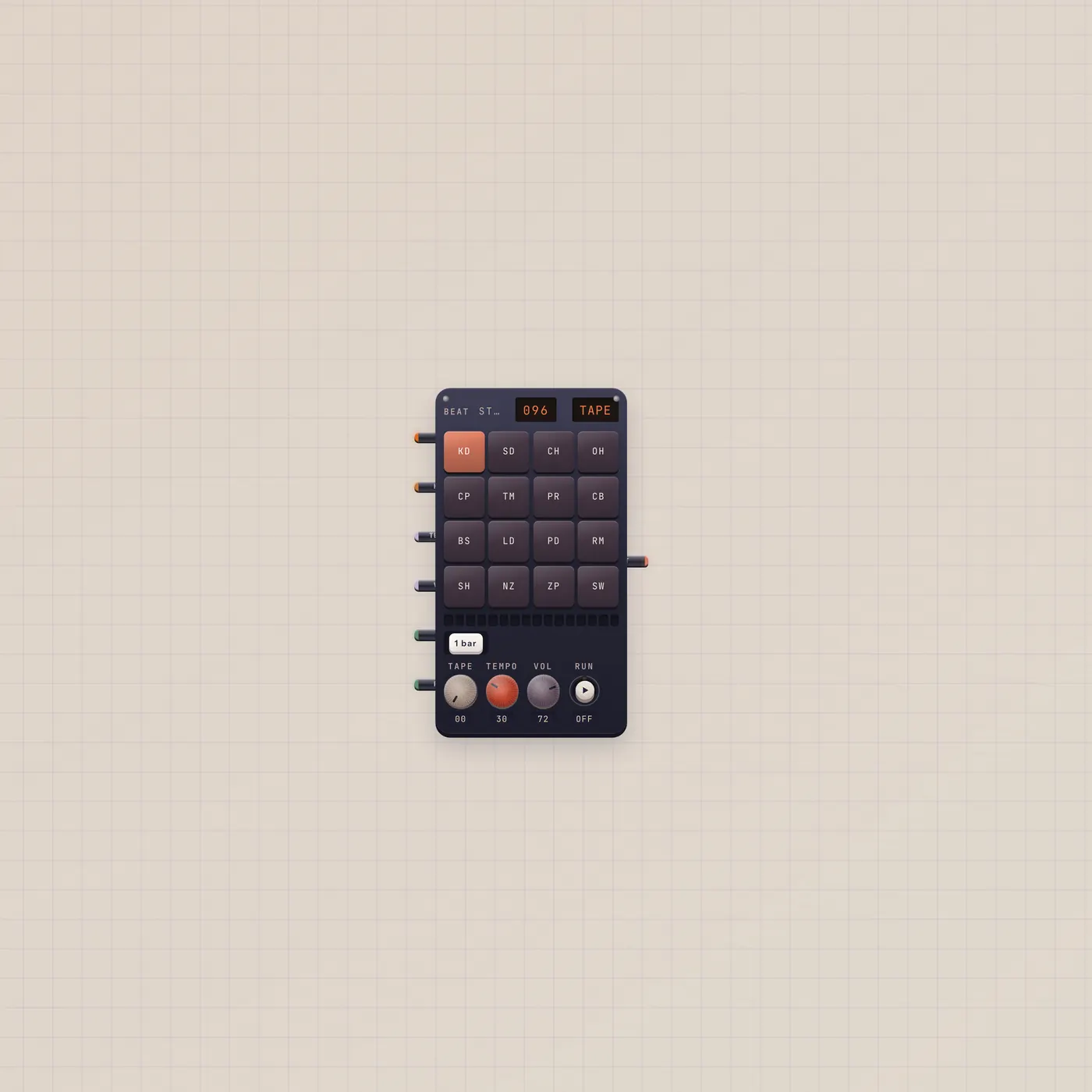

Drop FX. Pick a kind. Patch Keys.audio or BeatPad.audio into Effect.audio. Patch Effect.audio into Deck or Scope. A Slider or Lfo on Effect.mix rides the wet. Bypass if you only want to hear the dry.
What to patch next
Keys.audio → Effect.audio → Deck.audio is a take with space. BeatPad.audio into delay for a thrown loop. Need more than one slot? That is Rack. Need pitch? That is Correct.
Ports
| Jack | Dir | Kind | Label |
|---|---|---|---|
| audio | in | audio | In |
| mix | in | cv | Mix |
| audio | out | audio | Out |
Questions
- Effect or Rack?
- Effect is one slot. Rack is four to eight of the same plugins. Start here.
- Does Mix need a cable?
- No. The mix control is on the face. Patch CV when you want another device to ride it.
- Can I stack two Effects?
- Yes. Audio out of the first into audio in of the second.
